– High load capacities in concrete and masonry
– Good performance in diamond cored holes
– Suitable for dry, damp or water-filled holes
– Large diameter hole applications
– Excellent chemical resistance
– Small edge and rebar spacing
– Longer working time
| Hole Temp. | 10°C | 20°C | 30°C | 40°C |
|---|---|---|---|---|
| Gel Time | 2 hrs | 30 mins | 20 mins | 12 mins |
| Cure Time | 15 hrs | 8 hrs | 6 hrs | 4 hrs |
| Full Cure | 24 hrs | 14 hrs | 12 hrs | 8 hrs |
1 ) The gel time is the maximum time during which the epoxy can be worked before it begins to harden.
2 ) Anchors must not be disturbed before the cure time is achieved.
3 ) The full cure time is the minimum time required for the adhesive to achieve its ultimate load capacities.
Drill hole to correct diameter and depth
Use the brush and blow-out pump to clean the hole

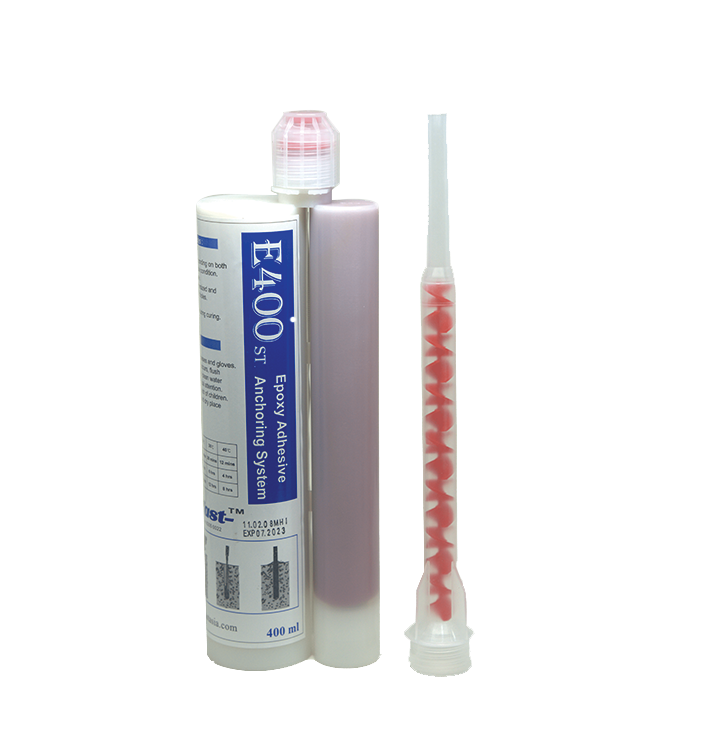

Cut off the opening and screw on the mixer nozzle
Throw away 10cm of adhesive or until even colour is achieved
Inject adhesive to 1/3 hole depth
Insert anchor slowly with twisting motion until depth is achieved
E400DT Dispensing Tool
400BP Air Blower
Steel Brush

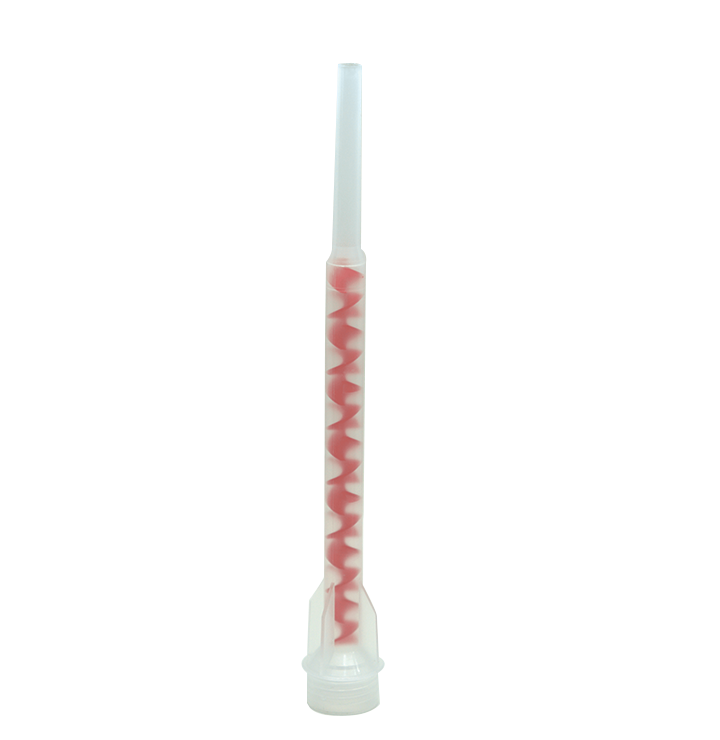

E400MN Mixer Nozzle
Injection – Sleeve
Anchor Rod Socket
